• Ultrasonic Cell processor
  • DH92-IIN
  • Power 650W, crushing capacity 0.5-500ml
  • DH92-IIN
  • Ultrasonic Cell processor
  • Power 650W, crushing capacity 0.5-500ml

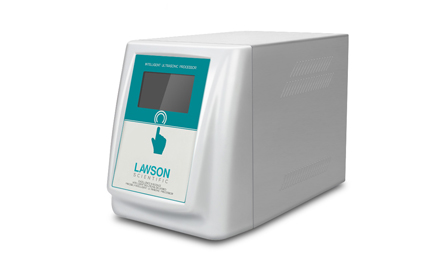

Ultrasonic Cell processor DH92-IIN, is a versatile and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and conduct ultrasonic processing of substances. It can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions.
Product Introduction
Ultrasonic Cell processor DH92-IIN, is a versatile and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and conduct ultrasonic processing of substances. It can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions.


Product Features
◆Used for the crushing of animal and plant cells, bacteria, spores or tissues, extracting proteins from cells, and conducting scientific cultivation experiments of viruses and vaccines.
◆Accelerates the reaction rate of chemical and physical reactions, and accelerates liquid degassing.
◆Used for scientific research analysis, such as dilution of crude oil, oil-water emulsification, accelerated decrystallization, glass pulp homogenization, etc.
◆Disperses rare earth minerals, various inorganic minerals, and prepares homogenized mixtures of latex particles with near-nanometer sizes.
◆Quickly and strongly washes fluids in mold microholes and blind holes.


Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.


Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.


Materials and Reagents
10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.


Technical Specifications
Model: DH92-IIN
Frequency: 20-25KHz
Power: 650W
Standard Amplitude Rod: Φ6
Optional Amplitude Rods: Φ2, 3, 10
Crushing Capacity: 0.5-500ml
Duty Ratio: 1-99%
Power Supply: 220/110V 50Hz/60Hz
Power Supply Chassis Size: 400×280×220mm
Net Weight: 12.1kg
Main Unit + Transducer Weight: 14kg
Package Size: 534×295×435mm


Probe Model Selection
Model Cell Disruption Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml
Φ10mm 10ml-500ml


Single Page - Color Page
Name: Author: Action:
Ultrasonic Cell processor DH92-IIN Ultrasonic Download


Related products
Name: Model:
Ultrasonic Cell processor DH92-IIN
Ultrasonic Disruptor DH88-IIN
Ultrasonic Tissue Homogenizer DH96-IIN
Product List
DH92-IIN Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Soundproof box set
Cross clamp (inside the soundproof box) piece
Test tube clamp (inside the soundproof box) piece
Special Wrench (used for disassembling the amplitu Set
Fuses piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
8A, 5A each 2
1
1
1
1
