• Ultrasonic Cell disruptor
  • DH98-IIIN
  • Power 1200W, crushing capacity 0.5-1000ml
  • DH98-IIIN
  • Ultrasonic Cell disruptor
  • Power 1200W, crushing capacity 0.5-1000ml

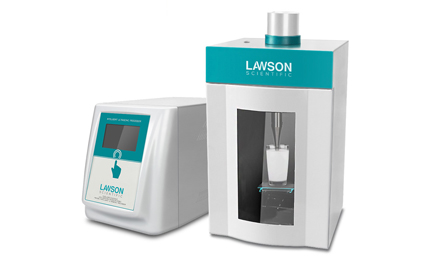

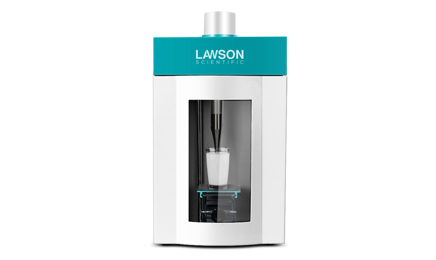

Ultrasonic Cell disruptor DH98-IIN, is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids for the ultrasonic treatment of materials. It can be used for the homogenization of various animal and plant cells, as well as virus cells. Additionally, it can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among other applications.
Product Introduction
Ultrasonic Cell disruptor DH98-IIN, is a multifunctional and versatile instrument that utilizes strong ultrasound to generate cavitation effects in liquids for the ultrasonic treatment of materials. It can be used for the homogenization of various animal and plant cells, as well as virus cells. Additionally, it can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among other applications.


Product Features
◆Used for the crushing of animal and plant cells, bacteria, spores or tissues, extracting proteins from cells, and conducting scientific cultivation experiments of viruses and vaccines.
◆Accelerates the reaction rate of chemical and physical reactions, and accelerates liquid degassing.
◆Used for scientific research analysis, such as dilution of crude oil, oil-water emulsification, accelerated decrystallization, glass pulp homogenization, etc.
◆Disperses rare earth minerals, various inorganic minerals, and prepares homogenized mixtures of latex particles with near-nanometer sizes.
◆Quickly and strongly washes fluids in mold microholes and blind holes.


Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.


Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.


Materials and Reagents
10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.


Technical Specifications
Model: DH98-IIN
Frequency: 20-25KHz
Power: 1200W
Random Amplitude Rod: Φ15
Optional Amplitude Rod: Φ2, 3, 10, 20
Crushing Capacity: 0.5-1000ml
Duty Ratio: 1-99%
Power Supply: 220/110V 50Hz/60Hz
Power Supply Box Size: 400×280×220mm
Net Weight: 12.6kg
Mainframe + Transducer Weight: 14.5kg
Outer Packing Size: 534×295×435mm


Probe Model Selection
Model Cell Disruption Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-200ml
Φ10mm 50ml-500ml
Φ15mm 50ml-700ml
Φ20mm 50ml-1000ml


Single Page - Color Page
Name: Author: Action:
Ultrasonic Cell disruptor DH98-IIIN Ultrasonic Download


Related products
Name: Model:
Ultrasonic Cell disruptor DH98-IIIN
Ultrasonic tissue disruptor DH92-IIDN
Ultrasonic Cell processor DH92-IIN
Product List
DH98-IIIN Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Soundproof box set
Cross clamp (inside the soundproof box) piece
Test tube clamp (inside the soundproof box) piece
Special Wrench (used for disassembling the amplitu Set
Fuses piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
1
8A, 5A each 2
1
1
1
1
