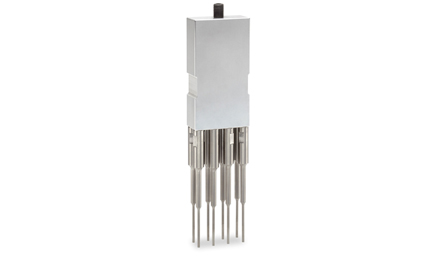

• Multiple Probe Sonicator
  • DH8S-2000
  • Power 2000W, crushing capacity 10-150ml*8 samples.
  • DH8S-2000
  • Multiple Probe Sonicator
  • Power 2000W, crushing capacity 10-150ml*8 samples.
Eight-channel ultrasonic cell disruptor, DH8S-2000 innovative customized 4-channel amplitude probe, simultaneously processing 4 samples, which ensures sample uniformity and greatly improves experimental efficiency.
Product Introduction
Multiple Probe Sonicator, DH8S-2000 innovative customized 4-channel amplitude probe, simultaneously processing 4 samples, which ensures sample uniformity and greatly improves experimental efficiency.


Product Features
◆Used for crushing animal and plant cells, bacteria, spores, or tissue, extracting proteins from cells, and conducting scientific culture experiments of viruses and vaccines.
◆Accelerates the reaction rate of chemical, physical, and other processes, and speeds up liquid dehydration.
◆Used for scientific research analysis of crude oil dilution, oil-water emulsification, accelerating decrystallization, glass homogenization, and more.
◆Disperses rare earths, various inorganic minerals, and prepares homogenized mixtures of latex particles close to nanometer scale.
◆Used for quickly and powerfully cleaning fluids from mold micropores and blind holes with high precision.


Experimental Objectives
1. Understand the basic principles of ultrasonic cell disruption.
2. Master the basic techniques of ultrasonic cell disruption.


Experimental Principle
When strong sound waves act on a solution, the phenomenon of bubble generation, growth, and rupture is related to cavitation. The shock waves and shear forces caused by cavitation cause cell lysis.


Materials and Reagents
10 mL bacteria, beaker, ice shavings, 75% alcohol cotton ball.


Technical Parameters
Model: DH8S-2000
Frequency: 20-25KHz automatic tracking
Power: 2000W
Random amplitude bar: Φ6*8pcs
Optional amplitude bar: Φ3*8pcs
Crushing capacity: 10-150ml*8 samples
Temperature alarm range: 0-100℃
Protection functions: Over temperature, over power, over time
Duty cycle: 1-99%
Power supply: 220/110V 50Hz/60Hz
Power supply box size: 400×280×220mm
Net weight: 12.1kg
Main unit + transducer weight: 18kg
Outer package size: 534×295×435mm


Probe Model Selection
Model Cell Disruption Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml


Single Page - Color Page
Name: Author: Action:
Multiple Probe Sonicator DH8S-2000 ultrasonic homogenizer Download


Related products
Name: Model:
Multi Probe ultrasonic homogenizer DH16S-3000
Multiple Probe Sonicator DH8S-2000
Multi-Element Probes Ultrasonic Processor DH4S-1000
Product List
DH8S-2000 Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Special Wrench (used for disassembling the amplitu Set
Fuses piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
8A, 5A each 2
1
1
1
1
