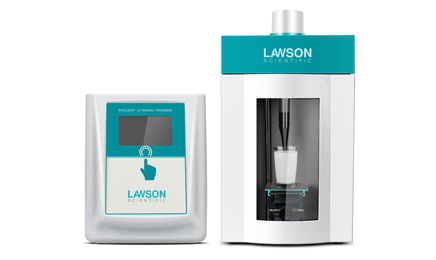

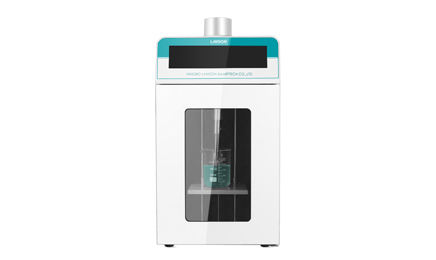

Ultrasonic Cell disruptor

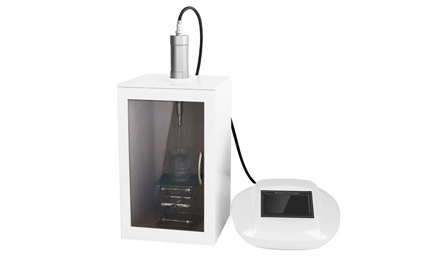

ultrasonic homogenizer

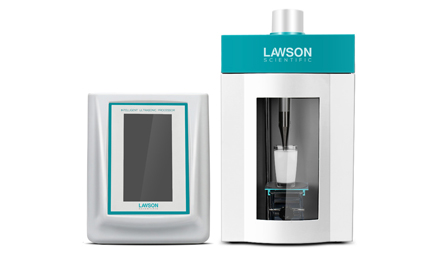

Ultrasonic Sonicator
Handheld Ultrasonic Homogenizer

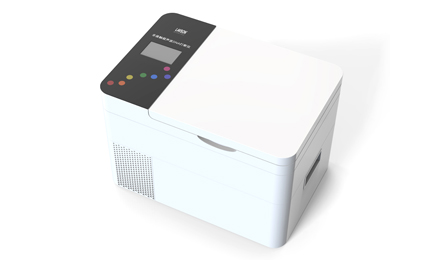

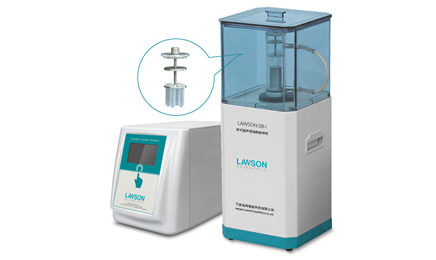

non-contact ultrasonic DNA disruptor

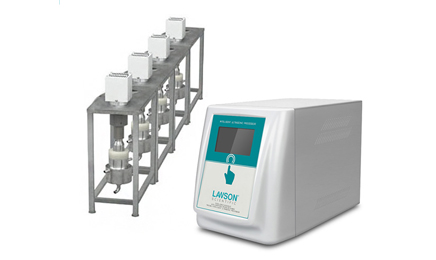

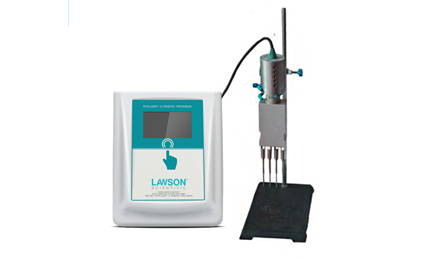

Multiple Probe Sonicator

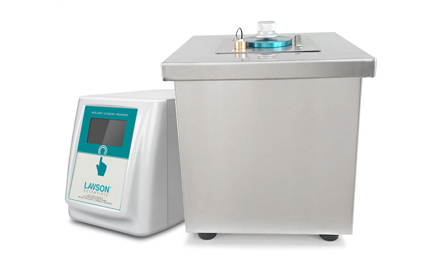

Multiple Frequency Ultrasonic

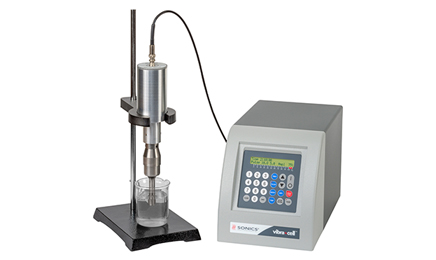

Sonics ultrasonic processors

UP-400I
Hand-held ultrasonic processor
Power 400W, crushing capacity 0.5-300ml.

Hand-held ultrasonic processor can be used for the crushing of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, and so on. It is widely applied in the fields of biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology, and other areas.

Product Introduction
UP-400S Hand-held ultrasonic processor is a multifunctional and versatile instrument that uses strong ultrasound to produce cavitation effects in liquids for ultrasonic processing of substances, greatly improving the stability and reliability of the instrument. It can be used for the homogenization of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, etc. It is widely used in the fields of biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology, and other fields.

Product Introduction

UP-400S Hand-held ultrasonic processor is a multifunctional and versatile instrument that uses strong ultrasound to produce cavitation effects in liquids for ultrasonic processing of substances, greatly improving the stability and reliability of the instrument. It can be used for the homogenization of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, etc. It is widely used in the fields of biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology, and other fields.

Product Features
Can be used for 96-well enzyme-linked immunoassays and numerous small test tubes. The handheld ultrasonic transducer can be used to control ultrasound in a pulsing manner, allowing multiple samples to complete ultrasound processing in a short period of time.
◆ Used for crushing animal and plant cells, bacteria, spores or tissues, extracting proteins from cells, and conducting scientific culture experiments on viruses and vaccines.
◆ Speeds up chemical and physical reactions and accelerates liquid degassing.
◆ Used for scientific analysis of crude oil dilution, oil-water emulsification, acceleration of decrystallization, glass pulp homogenization, and more.
◆ Disperses rare earths, various inorganic minerals, and prepares nearly nanometer-sized latex homogenized mixtures.
◆ Quick, powerful, and high-precision cleaning of mold micropores and blind holes.

Technical Specifications
Model:	UP-400I
Power:	400W
Power Control Range:	1-100%
Processing Volume:	0.5-300ml
Operating Frequency:	19-25KHz, automatic search range of ±450Hz
Operating Frequency Display:	Real-time display
Display:	3.5-inch color LCD screen
Control Mode:	Automatic, manual switchable (optional foot switch)
Total Time Setting:	0.1-999 min
Pulser Time:	0.1-99.9s adjustable (gap/working)
Intermittent Time:	0.1-99.9s
Sample Temperature Protection Setting:	Available (optional)
Random Amplitude Bar:	Φ6
Optional Amplitude Bar:	Φ2 / Φ3
Protection Alarm:	Over-temperature, over-current, overload, abnormal transducer, etc.
Power Supply:	AC110/220V F50/60Hz
Main Unit Size:	270210140 mm
Total Weight:	4.5 KG

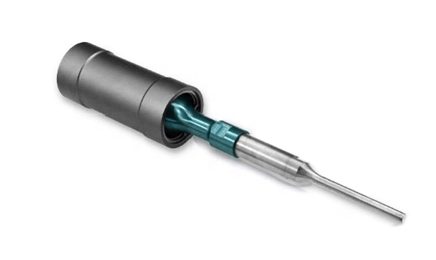

Probe Model Selection
Model	Broken Cell Capacity
Φ2mm	150ul－5ml
Φ3mm	200ul－10ml
Φ6mm	10ml－300ml
